Product Summary

The A1225XLPL84C is an FPGA. It is optimized for high-speed system logic integration. Based on Actel proprietary antifuse technology and 0.6-micron double metal CMOS process, the A1225XLPL84C offers a fine-grained, register-rich architecture with embedded dual-port SRAM and wide-decode circuitry. The A1225XLPL84C offers fast dual-port SRAM for implementing FIFOs, LIFOs, and temporary data storage. The large number of storage elements can efficiently address applications requiring wide datapath manipulation and transformation functions such as telecommunications, networking, and DSP.

Parametrics

A1225XLPL84C absolute maximum ratings: (1)VCC DC Supply Voltage: -0.5 to +7.0 V; (2)VI2 Input Voltage: -0.5 to VCC +0.5 V; (3)VO Output Voltage: -0.5 to VCC +0.5 V; (4)TSTG Storage Temperature: -65 to +150 ℃.

Features

A1225XLPL84C features: (1)2,500 to 30,000 Logic Gates; (2)Up to 3Kbits Configurable Dual-Port SRAM; (3)Fast Wide-Decode Circuitry; (4)Up to 250 User-Programmable I/O Pins; (5)225 MHz Performance; (6)5 ns Dual-Port SRAM Access; (7)100 MHz FIFOs; (8)7.5 ns 35-Bit Address Decode.

Diagrams

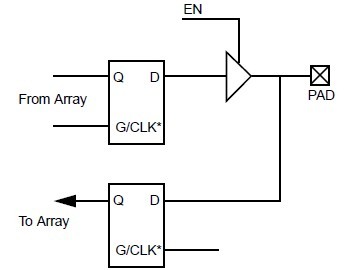

A1225XLPL84C circuit diagram
