Product Summary
The A1280XLPQ160I a member of Integrator Series FPGAs 1200XL family, which is designed to integrate system logic which is typically implemented in multiple CPLDs, PALs, and FPGAs.The A1280XLPQ160I provides the features and performance required for today’s complex, high-speed digital logic systems. Based on Actel proprietary antifuse technology and 0.6-micron double metal CMOS process, the A1280XLPQ160I offers a fine-grained, register-rich architecture with embedded dual-port SRAM and wide-decode circuitry.
Parametrics
A1280XLPQ160I absolute maximum ratings: (1)DC Supply Voltage: –0.5 to +7.0 V; (2)Input Voltage: –0.5 to VCC +0.5 V; (3)Output Voltage: –0.5 to VCC +0.5 V; (4)Storage Temperature: –65 to +150℃.
Features
A1280XLPQ160I features: (1)2,500 to 30,000 Logic Gates; (2)Up to 3Kbits Configurable Dual-Port SRAM; (3)Fast Wide-Decode Circuitry; (4)Up to 250 User-Programmable I/O Pins; (5)225 MHz Performance; (6)5 ns Dual-Port SRAM Access; (7)100 MHz FIFOs; (8)7.5 ns 35-Bit Address Decode.

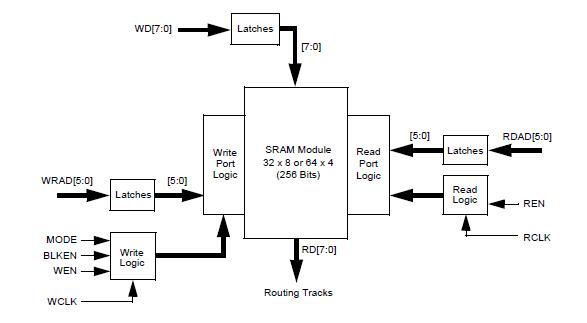

Diagrams
 |
