Product Summary
The AC82GM45 SLB94 is a graphics and memory controller hub.
Parametrics
AC82GM45 SLB94 absolute maximum ratings: (1)Die temperature under bias: 100℃; (2)Storage temperature: -55 to 150℃; (3)1.05-V core supply voltage with respect to VSS: -0.3 to 1.155V; (4)1.05-V graphics supply voltage with respect to VSS: -0.3 to 1.155V; (5)1.05-V controller link voltage with respect to VSS: -0.3 to 1.155V; (6)1.05-V AGTL+buffer DC input voltage with respect to VSS: -0.3 to 1.32V.
Features
AC82GM45 SLB94 features: (1)Launch Date: Q3’08; (2)Supported FSBs: 667MHz / 800MHz / 1066MHz; (3)FSB Parity: No; (4)Embedded Options Available: Yes; (5)Supplemental SKU: No; (6)Max TDP: 12 W; (7)Max Memory Size (dependent on memory type): 8 GB; (8)Memory Types: DDR2-667/800, DDR3-800/1066; (9)Memory Channels: 2; (10)Physical Address Extensions: 36-bit; (11)ECC Memory Supported: No; (12)Integrated Graphics: Yes; (13)Graphics Output: LVDS, SDVO, TV Out, CRT, DVI, HDMI, DisplayPort; (14)Intel Clear Video Technology: No; (15)Dual Display Capable: Yes; (16)Macrovision* License Required: No; (17)PCI Express: Revision 1.1; (18)PCI Express: Configurations 1x16; (19)Max CPU Configuration: 1; (20)TCASE: 100℃; (21)Package Size: 34mm x 34mm.

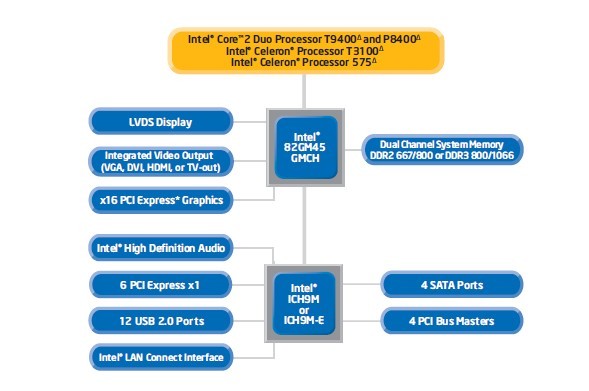

Diagrams
