Product Summary

The G2R-1-E is a power relay for a variety of purposes with various models.

Parametrics

G2R-1-E general specifications: (1)Contact resistance: 30 mΩ max. (high-capacity type: 100 mΩ max.) ; (2)Operate (set) time: 15 ms max. ; (3)Release (reset) time: AC: 10 ms max.; DC: 5 ms max. (w/built-in diode: 20 ms max.) ; (4)Max. operating frequency: Mechanical: 18,000 operations/hr; Electrical: 1,800 operations/hr (under rated load) ; (5)Insulation resistance: 1,000 MΩ min. (at 500 VDC) ; (6)Dielectric strength: 5,000 VAC, 50/60 Hz for 1 min between coil and contacts; 1,000 VAC, 50/60 Hz for 1 min between contacts of same polarity ; (7)Vibration resistance: Destruction: 10 to 55 to 10 Hz, 0.75-mm single amplitude (1.5-mm double amplitude); malfunction: 10 to 55 to 10 Hz, 0.75-mm single amplitude (1.5-mm double amplitude) ; (8)Shock resistance: Destruction: 1,000 m/s2; Malfunction: 200 m/s2 when energized; 100m/s2 when no energized ; (9)Endurance: Mechanical: AC coil: 10,000,000 operations min; DC coil: 20,000,000 operations min. (at 18,000 operations/hr); Electrical: 100,000 operations min. (at 1,800 operations/hr under rated load) ; (10)Ambient temperature: Operating: -40℃ to 70℃ (with no icing) ; (11)Ambient humidity: Operating: 5% to 85% ; (12)Weight: Approx. 17 g (plug-in terminal: approx. 20 g).

Features

G2R-1-E features: (1)Conforms to VDE0435 (VDE approval: C250 insulation grade), UL508, CSA22.2, SEV, SEMKO; (2)Meets VDE0700 requirements for household products according to VDE0110; (3)Clearance and creepage distance: 8 mm / 8 m; (4)Models with CTI250 material available; (5)High-sensitivity (360 mW) and high-capacity (16 A) types available; (6)Double-winding latching type available; (7)Plug-in with test button and quick-connect terminals available; (8)Highly functional socket available.

Diagrams

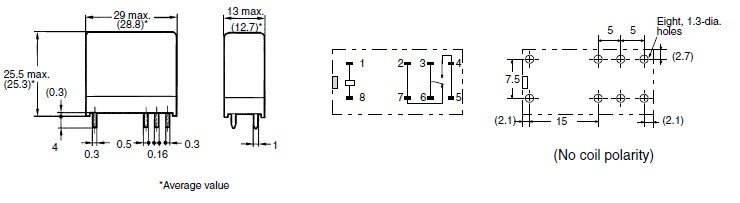

G2R-1-E circuit diagram
