Product Summary
The M69000 is an accelerator with integrated memory. It integrates high performance memory technology for the graphics frame buffer. Based on the proven HiQVideo graphics accelerator core, the M69000 combines state-of-the-art flat panel controller capabilities with low power, high performance integrated memory. The result is the start of a high performance, low power, highly integrated solution for the premier family of portable graphics products.
Parametrics
M69000 absolute maximum ratings: (1)VCC Supply Voltage: min=-0.5V, max=5.0V; (2)VI Input Voltage: min=-0.5V, max=5.5V; (3)TSTG Storage Temperature: min=-40℃, max=125℃.
Features
M69000 features: (1)Display centering and stretching features for optimal fit of VGA graphics and text on 800×600 and 1024×768 panels; (2)Simultaneous Hardware Cursor and Pop-up Window: 64×64 pixels by 4 colors; 128×128 pixels by 2 colors; (3)PCI/Frame AGP Bus with Burst Mode capability and BIOS ROM support; (4)Power Sequencing control outputs regulate application of bias voltage, +5V to the panel and +12V to the inverter for backlight operation.; (5)3.3V Operation, 5.0V tolerant I/O.

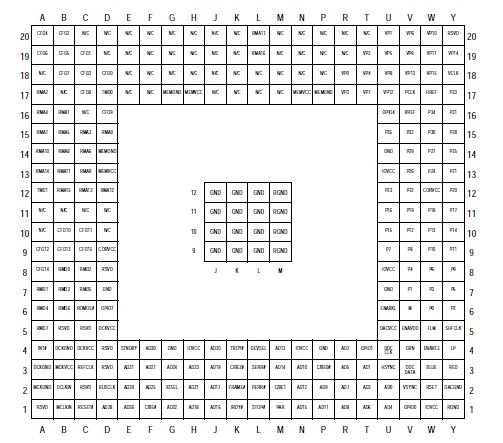

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 M69000 |
Other |
|
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
M69000 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
M69032P |
Other |
|
Data Sheet |
Negotiable |
|
||||
