Product Summary
The MAX414ESD is a kind of quad op amp, which sets a new standard for noise performance in high-speed, low-voltage systems. Input voltage-noisedensity is guaranteed to be less than 2.4nV/√Hz￣ at 1kHz. A unique design not only combines low noise with ±5V operation, but also consumes 2.5mA supply current per amplifier. Low-voltage operation is guaranteed with an output voltage swing of 7.3VP-P into 2kΩ from ±5V supplies. The MAX414ESD also operates from supply voltages between ±2.4V and ±5V for greater supply flexibility.The typical applications of MAX414ESD include: (1)Low-Noise Frequency Synthesizers; (2)Infrared Detectors; (3)High-Quality Audio Amplifiers; (4)Ultra Low-Noise Instrumentation Amplifiers; (5)Bridge Signal Conditioning.
Parametrics
MAX414ESD absolute maximum ratings: (1)Supply Voltage: 12V; (2)Differential Input Current: ±20mA; (3)Input Voltage Range: V+ to V-; (4)Common-Mode Input Voltage: (V+ + 0.3V) to (V- - 0.3V); (5)Short-Circuit Current Duration: Continuous; (6)Continuous Power Dissipation (TA = +70℃): 14-Pin Plastic DIP (derate 10.00mW/℃ above +70℃): 800mW; 14-Pin SO (derate 8.33mW/℃ above +70℃): 667mW; (7)Operating Temperature Ranges: -40℃ to +85℃; (8)Storage Temperature Range: -65℃ to +150℃; (9)Lead Temperature (soldering, 10s): +300℃.
Features
MAX414ESD features: (1)Voltage Noise: 2.4nV/√Hz￣ (max) at 1kHz; (2)2.5mA Supply Current Per Amplifier; (3)Low Supply Voltage Operation: ±2.4V to ±5V; (4)28MHz Unity-Gain Bandwidth; (5)4.5V/μs Slew Rate; (6)250μV (max) Offset Voltage (MAX410/MAX412); (7)115dB (min) Voltage Gain; (8)Available in an Ultra-Small TDFN Package.

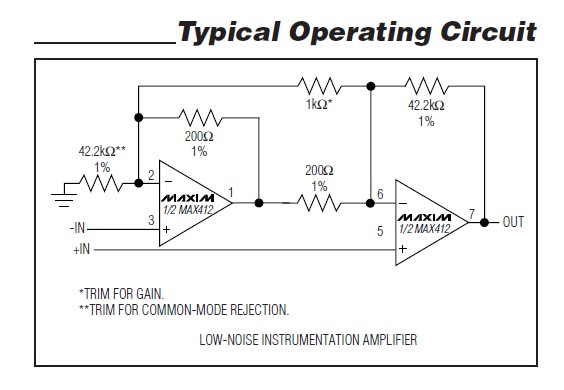

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX414ESD+T |
Maxim Integrated Products |
Operational Amplifiers - Op Amps Quad 28MHz Low-V Low-Noise Precision |
Data Sheet |
Negotiable |
|
||||
 |
MAX414ESD-T |
Maxim Integrated Products |
Operational Amplifiers - Op Amps Quad 28MHz Low-V Low-Noise Precision |
Data Sheet |
Negotiable |
|
||||
|
MAX414ESD+ |
Maxim Integrated Products |
Operational Amplifiers - Op Amps Quad 28MHz Low-V Low-Noise Precision |
Data Sheet |
Negotiable |
|
||||
|
MAX414ESD |
Maxim Integrated Products |
Operational Amplifiers - Op Amps Quad 28MHz Low-V Low-Noise Precision |
Data Sheet |
Negotiable |
|
||||
