Product Summary

The SC2200UFH-300 is a Thin Client On a Chip.

Parametrics

SC2200UFH-300 absolute maximum ratings: (1)Operating case temperature: -45 to 110 ℃; (2)Storage temperature: -45 to 125 ℃; (3)Voltage on 5V tolerant balls: -0.5 to 6.0 V, Others: -0.5 to 3.6 V; (4)Input clamp current: -0.5 to 10 mA; (5)Output clamp current: 25 mA.

Features

SC2200UFH-300 features: (1)32-Bit x86 processor, up to 300 MHz, withMMX instruction set support; (2)Memory controller with 64-bit SDRAM interface; (3)2D graphics accelerator; (4)CRT controller with hardware video accelerator; (5)CCIR-656 video input port with direct video for full screen display; (6)PC/AT functionality; (7)PCI bus controller; (8)IDE interface, two channels; (9)USB, three ports, OHCI (OpenHost Controller Interface) version 1.0 compliant; (10)Audio, AC97/AMC97 version 2.0 compliant.

Diagrams

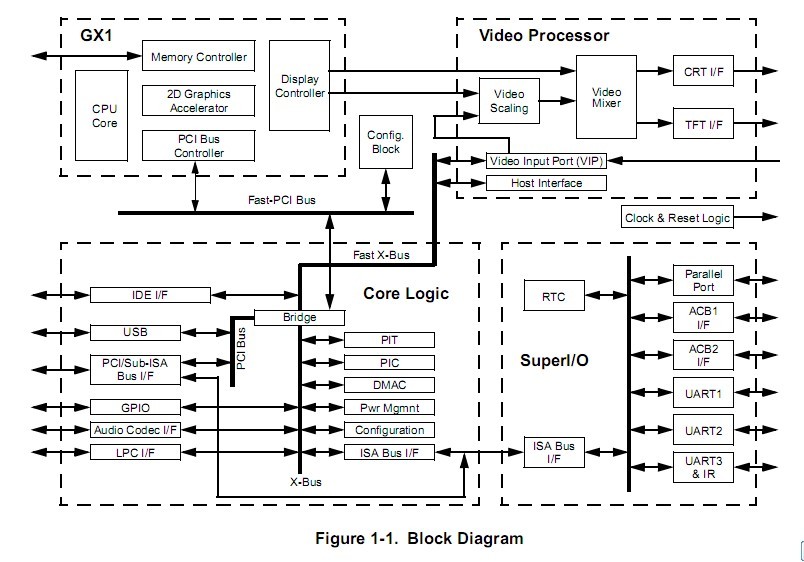

SC2200UFH-300 circuit diagram
