Product Summary
The SML-512DWT86 is a LED from ROHM.
Parametrics
SML-512DWT86 absolute maximum ratings: (1)Emitting color: Orange; (2)power disspation, Pd(mw): 75; (3)Forward current, IF(mA): 30; (4)peak torwad, IFP(mA): 100; (5)Reverse vottage, Vm(mA): 5; (6)Operating temperature, Tope(℃): -40 to +100; (7)Stotage temperature, Tstg(℃): -40 to +100.
Features
SML-512DWT86 features: (1)Forward Voltage: 2.00V; (2)Luminous Intensity: 63.0mcd; (3)Size-Height: 550μm; (4)Size-Length: 1.60mm; (5)Size-Width: 800μm; (6)Wavelength: 611nm; (7)Operating Temperature: 100℃(max); (8)Case/Package: 0603; (9)Lead-Free Status: Lead Free; (10)Lens Type: Non-Diffused; (11)Packaging: Cut Tape (CT); (12)RoHS Compliant.

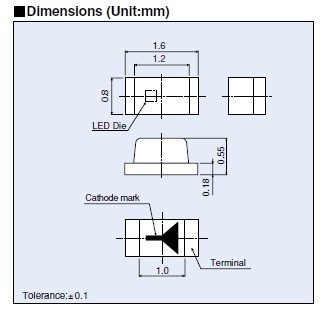

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SML-512DWT86 |
ROHM Semiconductor |
Standard LED - SMD ORANGE HIGH BRIGHT SMD 0.55MM THICK |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
 |
SML-010 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
SML-010DTT86 |
ROHM Semiconductor |
Standard LED - SMD ORANGE LENS SMD 3X2mm |
Data Sheet |
|
|
||||||||||||
|
SML-010FTT86 |
ROHM Semiconductor |
Standard LED - SMD LT GREEN LENS SMD 3X2mm |
Data Sheet |
|
|
||||||||||||
|
SML-010LTT86 |
ROHM Semiconductor |
Standard LED - SMD 660RED LENS SMD 3X2mm |
Data Sheet |
|
|
||||||||||||
|
SML-010LTT87 |
ROHM Semiconductor |
Standard LED - SMD "-86" T/R SUFFIX IS PREFERRED |
Data Sheet |
|
|
||||||||||||
|
SML-010MTT86 |
ROHM Semiconductor |
Standard LED - SMD GREEN LENS SMD 3X2mm |
Data Sheet |
|
|
||||||||||||
