The TA7680AP is a bipolar linear integrated circuit silicon monolithic.
Parametrics
TA7680AP absolute maximum ratings: (1)Supply voltage VCC: 15V; (2)Terminal open voltage V11: 15V; (3)Video DC output current I15: 6mA; (4)Audio DC output current I3: 3mA; (5)Terminal 2 voltage V2: 15V; (6)Power dissipation PD: 1.6W; (7)Operating temperature Topr: -20 to 65℃; (8)Storage temperature Tstg: -55 to 150℃.
Features

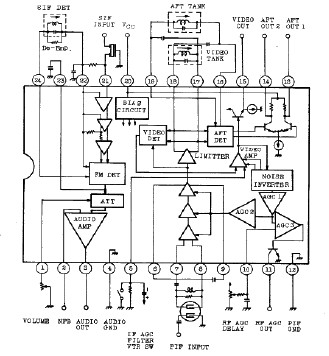

TA7680AP features: (1)High gain, wide band IF amplifier; (2)AGC characteristics with excellent stability; (3)Excellent DG/DP characteristics; (4)Excellent S/N characteristics due to delayed 3 stages AGC action; (5)Negative video output signal; (6)Switch off the video part with VTR SW.
