Product Summary

The TC2000 is a two channel audio controller that uses Tripath’s proprietary Digital Power Processing (DPPTM) technology. When combined with switching power output stages, the TC2000 allows the implementation of a complete Class-T audio amplifier. Class-T amplifiers offer both the audio fidelity of Class-AB and the power efficiency of Class-D amplifiers. The applications of the TC2000 include 5.1-Channel DVD, Mini/Micro Component Systems, Home Theater and Stereo applications.

Parametrics

TC2000 absolute maximum ratings: (1)V5, 5V Power Supply: 6 V; (2)Vlogic, Input Logic Level: V5+0.3V; (3)TA, Operating Free-air Temperature Range: -40 to 85℃; (4)TSTORE, Storage Temperature Range: -55 to 150℃; (5)TJMAX, Maximum Junction Temperature: 150℃; (6)ESDHB, ESD Susceptibility – Human Body Model, all pins: 2000 V .

Features

TC2000 features: (1)Class-T Architecture; (2)Audiophile Quality Sound; (3)0.007% THD+N @ 30W 8Ω (with TP2050); (4)High Efficiency; (5)92% @ 60W 8Ω (with TP2050); (6)Dynamic Range >100 dB.

Diagrams

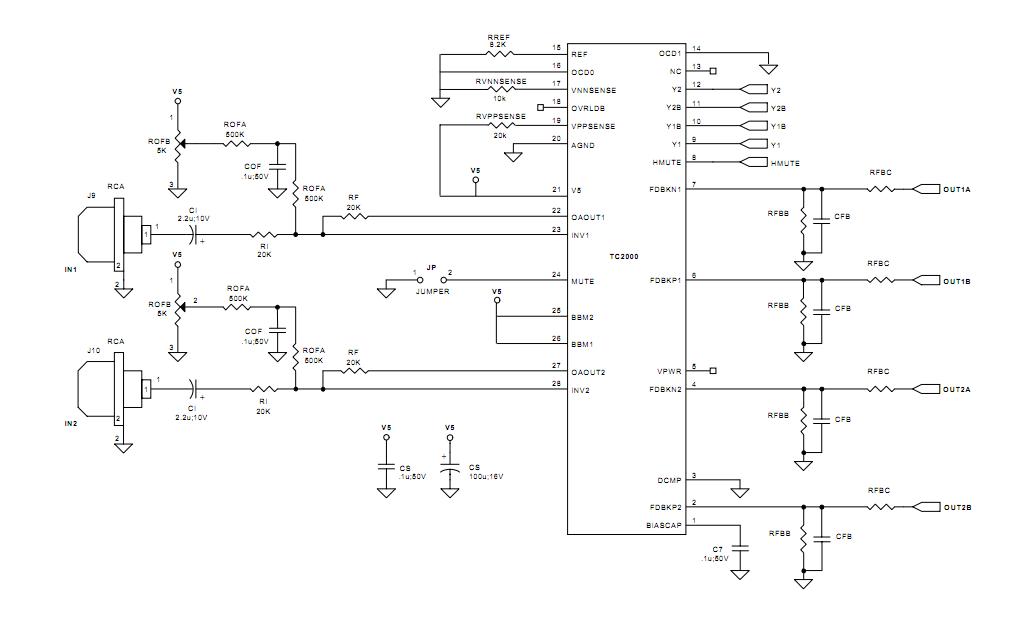

TC2000 circuit diagram
