ad1855jrs

Product Summary

The ad1855jrs is a high performance, single-chip stereo, audio DAC delivering 113 dB Dynamic Range and SNR (A-weighted—not muted) at 48 kHz sample rate. The ad1855jrs is comprised of a multibit sigma-delta modulator with dither, continuous time analog filters and analog output drive circuitry. Other features of the ad1855jrs include an on-chip stereo attenuator and mute, programmed through an SPI-compatible serial control port. The ad1855jrs is fully compatible with current DVD formats, including 96 kHz sample frequency and 24 bits. The ad1855jrs is also backwards compatible by supporting 50 μs/15 μs digital de-emphasis intended for redbook 44.1 kHz sample frequency playback from compact discs.

Parametrics

ad1855jrs absolute maximum ratings: (1)DVDD to DGND: –0.3 to 6 V; (2)AVDD to AGND: –0.3 to 6 V; (3)Digital Inputs: DGND – 0.3 to DVDD + 0.3 V; (4)Analog Outputs: AGND – 0.3 to AVDD + 0.3 V; (5)AGND to DGND: –0.3 to 0.3 V; (6)Reference Voltage: (AVDD + 0.3)/2; (7)Soldering: +300 ℃.

Features

ad1855jrs features: (1)5 V Stereo Audio DAC System; (2)Accepts 16-/18-/20-/24-Bit Data; (3)Supports 24 Bits and 96 kHz Sample Rate; (4)Multibit Sigma-Delta Modulator with Perfect Differential Linearity Restoration for Reduced Idle Tones and Noise Floor; (5)Data Directed Scrambling DAC—Least Sensitive to Jitter; (6)Differential Output for Optimum Performance; (7)113 dB Signal-to-Noise and Dynamic Range at 48 kHz Sample Rate; (8)110 dB Signal-to-Noise and Dynamic Range at 96 kHz Sample Rate; (9)–97 dB THD+N; (10)On-Chip Volume Control with 1024 Steps; (11)Hardware and Software Controllable Clickless Mute; (12)Zero Input Flag Outputs for Left and Right Channels; (13)Digital De-Emphasis Processing; (14)Supports 128, 256, 384, and 512 FS Master Mode Clock; (15)Switchable Clock Doubler; (16)Power-Down Mode Plus Soft Power-Down Mode; (17)Flexible Serial Data Port with Right-Justified, Left-Justified, I2S-Compatible and DSP Serial Port Modes; (18)28-Lead SSOP Plastic Package.

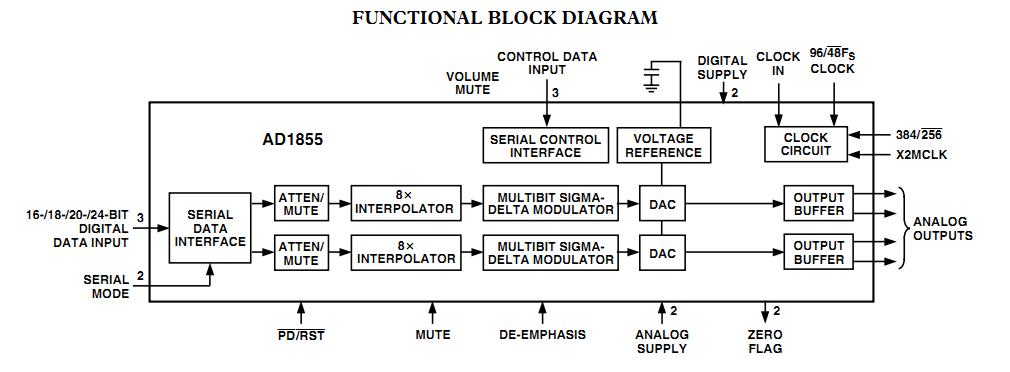

Diagrams
