Product Summary

The DS32KHZ is a temperature-compensated crystal oscillator (TCXO) with an output frequency of 32.768kHz. This device DS32KHZ addresses applications requiring better timekeeping accuracy and can be used to drive the X1 input of most Dallas Semiconductor real-time clocks (RTCs), chipsets, and other ICs containing RTCs. This device is available in commercial (DS32kHz) and industrial (DS32kHz-N) temperature versions. The applicaitons of the DS32KHZ include GPS Receivers Telematics, Network Timing and Synchronization in Servers, Routers, Hubs, and Switches and Automatic Power Meters.

Parametrics

DS32KHZ absolute maximum ratings: (1)Voltage Range on Any Pin Relative to Ground: -3.0V to +7.0V; (2)Operating Temperature Range: Commercial: 0℃ to +70℃, Industrial: -40℃ to +85℃; (3)Storage Temperature Range: -40 to +85℃; (4)Soldering Temperature (BGA): See IPC/JEDEC J-STD-020A (2x max); (5)Soldering Temperature, Leads (DIP): 260℃ for 10 seconds.

Features

DS32KHZ features: (1)Accurate to ±4 Min/Yr (-40℃ to +85℃); (2)Accurate to ±1 Min/Yr (0℃ to +40℃); (3)Battery Backup for Continuous Timekeeping; (4)VBAT Operating Voltage: 2.7V to 5.5V with VCC Grounded; (5)VCC Operating Voltage: 4.5V to 5.5V; (6)Operating Temperature Range: 0℃ to +70℃ (Commercial); (7)-40℃ to +85℃ (Industrial); (8)No Calibration Required; (9)Low-Power Consumption; (10)Surface Mountable Using BGA Package; (11)UL Recognized.

Diagrams

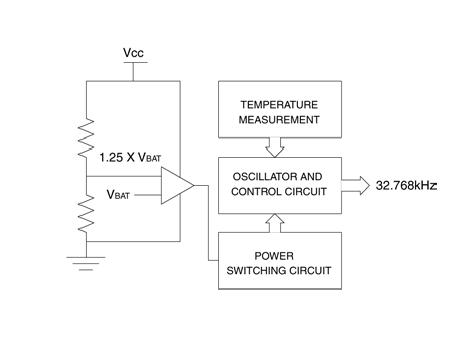

DS32KHZ circuit diagram
