Product Summary
The EP2C50F672I8N is an FPGA. The device contains a two-dimensional row- and column-based architecture to implement custom logic. Column and row interconnects of varying speeds provide signal interconnects between logic array blocks (LABs). The EP2C50F672I8N is embedded memory blocks, and embedded multipliers. The low cost and optimized feature set of the EP2C50F672I8N make them ideal solutions for a wide array of automotive, consumer, communications, video processing, test and measurement, and other end-market solutions.
Parametrics
EP2C50F672I8N absolute maximum ratings: (1)Supply voltage: -0.5 to 1.8V; (2)Output supply voltage: -0.5 to 4.6V; (3)PLL supply voltage: -0.5 to 1.8V; (4)DC input voltage: -0.5 to 4.6V; (5)DC output current, per pin: -25 to 40 mA; (6)Storage temperature: -65 to +150℃; (7)Junction temperature: 125℃.
Features
EP2C50F672I8N features: (1)High-density architecture with 4,608 to 68,416 LEs; (2)Embedded multipliers; (3)Advanced I/O support; (4)Flexible clock management circuitry; (5)Device configuration; (6)Intellectual property.

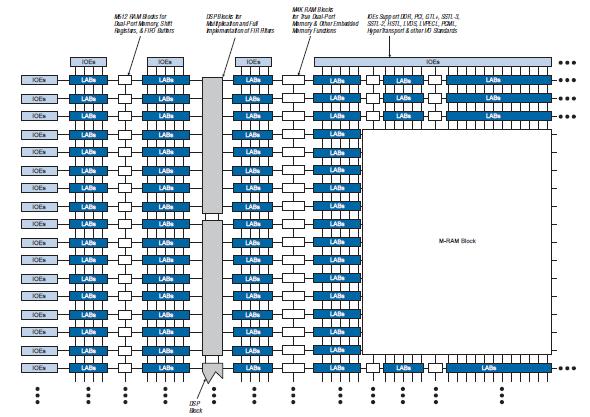

Diagrams
