EPCS16SI8N

16MBIT, 8-SOIC, EPCS16SI8N, -0.6 to 4.0 V, 15 mA, serial configuration device

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.75~4.67 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $3.75~4.67

PartNumber:: EPCS16SI8N

Brand:: Altera Corporation - ALTR | Pack: SOIC | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ouyang's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-25

From Other Seller

Part Number:EPCS16SI8N
US $3.75 - 4.67
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
SIL9030CTU

US $2.50 - 5.10 / Piece
(0) Remove
Quantity:

piece

Product Summary

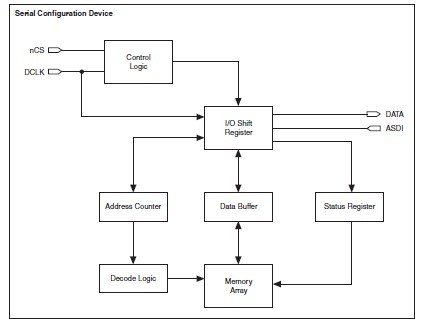

The EPCS16SI8N is a serial configuration device.

Parametrics

EPCS16SI8N absolute maximum ratings: (1)VCC, Supply voltage: -0.6 to 4.0 V; (2)VI, DC input voltage: -0.6 to 4.0 V; (3)DC input voltage: -0.5 4.0 V; (4)IMAX, DC VCC or GND current: 15 mA; (5)IOUT, DC output current per pin: -25 to 25 mA; (6)P,D Power dissipation: 54 mW; (7)TSTG, Storage temperature No bias: -65 to 150℃; (8)TAMB, Ambient temperature Under bias: -65 to 135℃; (9)TJ, Junction temperature Under bias: 135℃.

Features

EPCS16SI8N features: (1)1-, 4-, 16-, 64-, and 128-Mbit flash memory devices that serially configure ArriaR series, CycloneR series, all device families in the StratixR series except the Stratix device family, and FPGAs using the active serial (AS) configuration scheme; (2)Easy-to-use four-pin interface; (3)Low cost, low-pin count, and non-volatile memory; (4)Low current during configuration and near-zero standby mode current; (5)2.7-V to 3.6-V operation; (6)available in 8-pin small outline integrated circuit (SOIC) package; (7)Enables the NiosR processor to access unused flash memory through AS memory interface; (8)Re-programmable memory with more than 100,000 erase/program cycles; (9)Write protection support for memory sectors using status register bits; (10)In-system programming support with SRunner software driver; (11)In-system programming support with USB Blaster.,EthernetBlaster, or ByteBlaster. II download cables; (12)Additional programming support with the AlteraR Programming Unit (APU) and programming hardware from BP Microsystems, System General, and other vendors; (13)Delivered with the memory array erased.
