Product Summary
The IDG300Q is an integrated dual-axis angular rate sensor. It uses InvenSense’s proprietary and patented MEMS technology with vertically driven, vibrating masses to make a functionally complete, low cost, dual-axis angular rate sensor. All required electronics are integrated onto a single chip with the sensor. The applications of the IDG300Q include general motion sensing, vehicle motion analysis, platform stabilization and inertial measurement units.
Parametrics
IDG300Q absolute maximum ratings: (1)supply votlage: -0.3 to 6V; (2)acceleration: 500g for 0.3ms; (3)operating temperature range: -40 to 105℃; (4)storage temperature range: -40 to 125℃.
Features
IDG300Q features: (1)integrated X-and Y-axis gyro on a single chip; (2)factory trmmed full scale range of ±500%/sec; (3)integrated low-pass filters; (4)high vibration rejection over a wide frequency range; (5)high cross-axis isolation by design; (6)3V single supply operation; (7)50000g shock tolerance; (8)RoHS compliant; (9)QFN package.

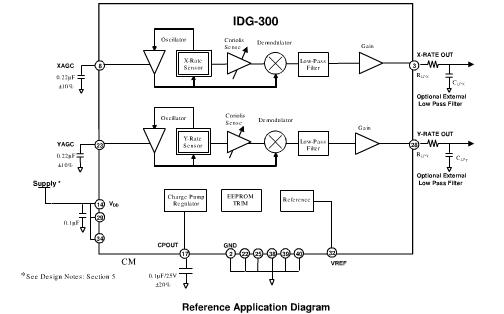

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 IDG300Q |
Other |
|
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
IDG300Q |
Other |
|
Data Sheet |
Negotiable |
|
||||
