Product Summary
The XC2C256TQ144CMS is a CoolRunner-II CPLD. It is designed for both high performance and low power applications. This lends power savings to high-end communication equipment and high speed to battery operated devices.
Parametrics
XC2C256TQ144CMS absolute maximum ratings: (1)Supply voltage relative to ground: –0.5 to 2.0 V; (2)Supply voltage for output drivers: –0.5 to 4.0 V; (3)JTAG input voltage limits: –0.5 to 4.0 V; (4)JTAG input supply voltage: –0.5 to 4.0 V; (5)Input voltage relative to ground: –0.5 to 4.0 V; (6)Voltage applied to 3-state output: –0.5 to 4.0 V; (7)Storage Temperature (ambient): –65 to +150 ℃; (8)TJ Junction Temperature: +150 ℃.
Features
XC2C256TQ144CMS features: (1)Optimized for 1.8V systems: As fast as 5.7 ns pin-to-pin delays, As low as 13 μA quiescent current; (2)Industry best 0.18 micron CMOS CPLD: Optimized architecture for effective logic synthesis. Refer to the CoolRunner-II family data sheet for architecture description. Multi-voltage I/O operation-1.5V to 3.3V; (3)Available in multiple package options.

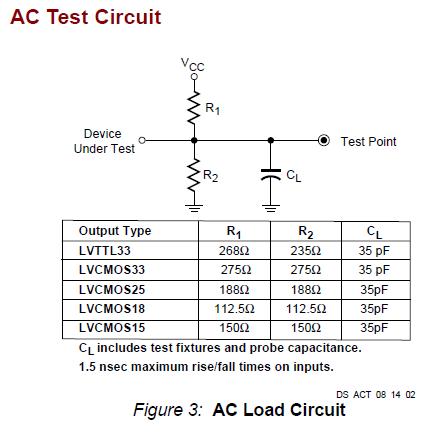

Diagrams
 |
