Product Summary

The M30624FGPGP#U5C is a single-chip microcomputer. It is suitable for control of various OA, communication, and industrial equipment which requires high-speed arithmetic/logic operations. Its package is QFP100.

Parametrics

M30624FGPGP#U5C absolute maximum ratings: (1)VCC1, VCC2, supply voltage: -0.3 to 6.5V when VCC1=AVCC; (2)AVCC, analog supply voltage: -0.3 to 6.5V when VCC1=AVCC; (3)Pd, power dissipation: 300mW when -40℃<Topr≤85℃; 200mW when -40℃<Topr≤125℃; (4)Tstg, storage temperature: -65 to 150℃.

Features

M30624FGPGP#U5C features: (1)operate using sophisticated instructions featuring a high level of instruction efficiency; (2)1M bytes of address spac; (3)capable of executing instructions at high speed; (4)contains a multiplier and DMAC.

Diagrams

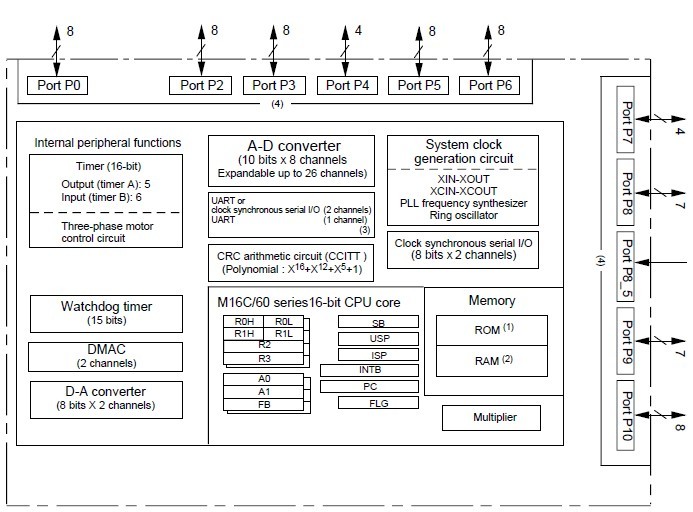

M30624FGPGP#U5C circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
M30624FGPGP#U5C
M30624FGPGP#U5C


IC M16C MCU FLASH 256K 100LQFP

Data Sheet

0-1: $12.00
1-10: $11.10
10-100: $9.45
100-250: $8.70
250-500: $8.25
500-1000: $7.80
1000-2500: $7.56
2500-5000: $7.35
5000-10000: $7.20
