Product Summary
The MD2534-D2G-X-P is an Embedded Flash Drive (EFD) designed for mobile handsets and consumer electronics devices. It enables multimedia driven applications shuch as music, photo, video, TV, GPS, games, email, office and other applications. The MD2534-D2G-X-P uses the most advanced Multi-Level Cell (MLC) and binary (SLC) NAND flash technologies.
Parametrics
MD2534-D2G-X-P absolute maximum ratings: (1)1.8V DC supply voltage, VCC1: -0.3 to 2V; (2)3.3V DC supply voltage, VCC: -0.3 to 4V; (3)Input pin voltage, Vin: -0.3 to 3.6V; (4)Ambient Temperature, OTR: -40 to 85℃; (5)Storage temperature, Tstg: -55 to +150℃.
Features
MD2534-D2G-X-P features: (1)Flash disk for both code and data storage; (2)Code and data storage protection; (3)Low voltage; (4)Current Consumption; (5)1Gb (128MB) 16Gb (2GB) data storage capacity, with device cascading options for up to 32Gb (4GB); (6)Enhanced Programmable Boot Block (32KB) enabling eXecute In Place (XIP) functionality using 16-bit access; (7)Small form factor.

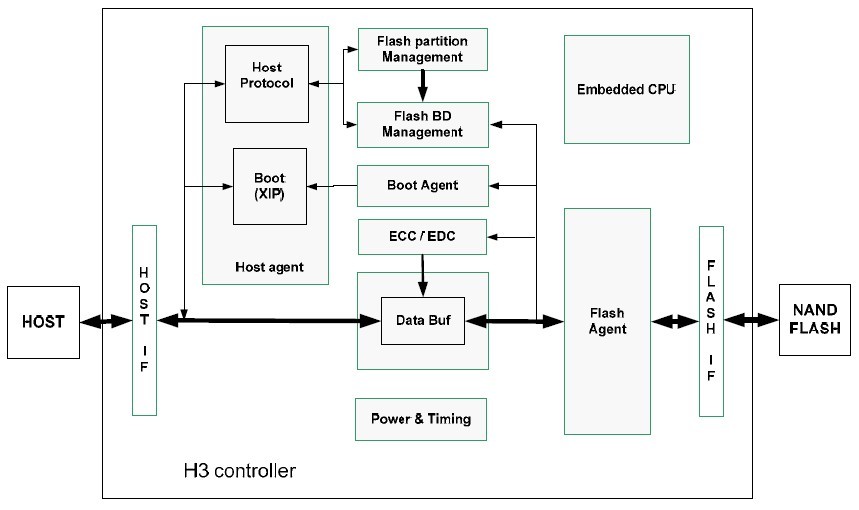

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MD2534-D2G-X-P |
|
IC MDOC H3 2GB FBGA |
Data Sheet |
Negotiable |
|
||||
|
MD2534-D2G-X-P/Y |
|
IC MDOC H3 2GB 115-BGA |
Data Sheet |
Negotiable |
|
||||
