Product Summary
The XC2S50-5FGG256I belongs to Spartan-II Field-Programmable Gate Array family, which gives users high performance, abundant logic resources, and a rich feature set, all at an exceptionally low price. The XC2S50-5FGG256I offers densities ranging from 15,000 to 200,000 system gates. The XC2S50-5FGG256I is a superior alternative to mask-programmed ASICs. The XC2S50-5FGG256I avoids the initial cost, lengthy development cycles, and inherent risk of conventional ASICs. Also, FPGA programmability permits design upgrades in the field with no hardware replacement necessary (impossible with ASICs).
Parametrics
XC2S50-5FGG256I maximum ratings: (1)Supply voltage relative to GND(2): –0.5 to 3.0 V; (2)Supply voltage relative to GND(2): –0.5 to 4.0 V; (3)Input reference voltage: –0.5 to 3.6 V; (4)Input voltage relative to GND: 5V tolerant I/O(4), –0.5 to 5.5 V; No 5V tolerance(5), –0.5 to VCCO+0.5 V; (5)Voltage applied to 3-state output: 5V tolerant I/O(4), –0.5 to 5.5 V; No 5V tolerance(5), –0.5 to VCCO+0.5 V; (6)Storage temperature (ambient): –65 +150℃; (7)Junction temperature: +125℃.
Features
XC2S50-5FGG256I features: (1)Second generation ASIC replacement technology; (2)Fully PCI compliant; (3)Low-power segmented routing architecture; (4)Full readback ability for verification/ observability; (5)Dedicated carry logic for high-speed arithmetic; (6)Efficient multiplier support; (7)Cascade chain for wide-input functions; (8)Versatile I/O and packaging; (9)Core logic powered at 2.5V and I/Os powered at 1.5V, 2.5V, or 3.3V.

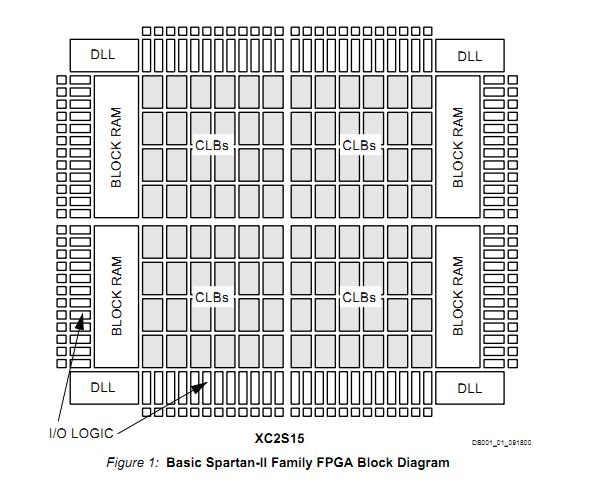

Diagrams
 |
