Product Summary

The MPC8280CZUUPEA belongs to MPC82xx series PowerQUICC II. It is a 32-bit IC device. The MPC8280CZUUPEA contains circuitry protecting against damage due to high static voltage or electrical fields; however, it is advised that normal precautions be taken to avoid application of any voltages higher than maximum-rated voltages to this high-impedance circuit. Reliability of operation is enhanced if unused inputs are tied to an appropriate logic voltage level (either GND or VCC).

Parametrics

MPC8280CZUUPEA absolute maximum ratings: (1)Core supply voltage, VDD: 1.45 to 1.60V; (2)PLL supply voltage, VCCSYN: 1.45 to 1.60V; (3)I/O supply voltage, VDDH: 3.135 to 3.465V; (4)Input voltage, VIN: GND (-0.3) to 3.465V; (5)Junction temperature (maximum), Tj: 150℃.

Features

MPC8280CZUUPEA features: (1)Dual-issue integer (G2_LE) core; (2)Separate power supply for internal logic and for I/O; (3)Separate PLLs for G2_LE core and for the CPM; (4)64-bit data and 32-bit address 60x bus; (5)32-bit data and 18-bit address local bus; (6)60x-to-PCI bridge; (7)PCI bridge; (8)System interface unit (SIU); (9)12-bank memory controller; (10)CPU core can be disabled and the device can be used in slave mode to an external core; (11)Communications processor module (CPM).

Diagrams

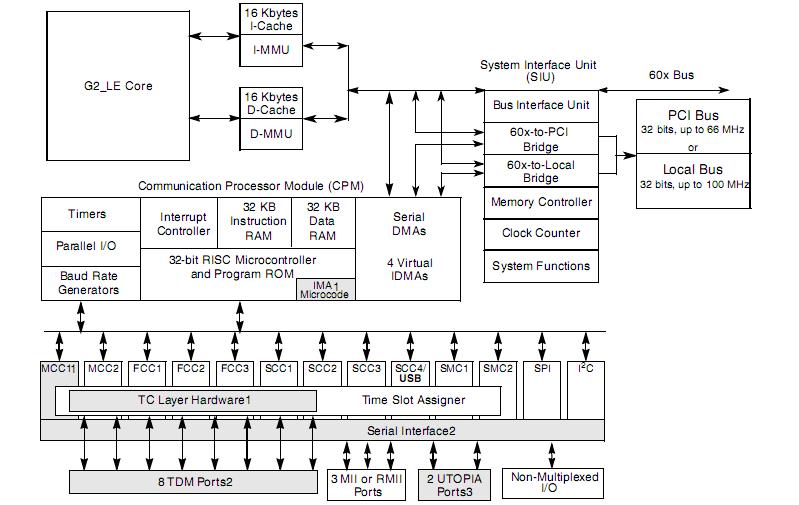

MPC8280CZUUPEA circuit diagram
